Brand Name : SEWO
Model Number : SEWO-FZ180
Certification : CE,IS09001
Place of Origin : China
MOQ : 1 lane
Price : Negotiable
Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability : 2000 sets per month
Delivery Time : 5-7 working days
Packaging Details : wooden box
Product name : Supermarket Swing Gate
Material : 201 Stainless Steel
Power supply : AC220V
Dimension : 260 * 180 * 1050mm
Type : Swing Gate
Arm Length : ≤ 1700mm
Working environment : Indoor / Outdoor ( Shelter)
Warranty : 12 Months
Color : Sliver or Customized
Direction : Single/ bi-direction
Transit speed : 20~60 people/minute
Usage : Office,Hotel,Library,Metro Station,ect.
The square pillar swing gate is a high-tech product mainly designed for intelligent management of personnel passages. The product is finely processed, fully functional and high grade, mainly used in high-end residential areas, smart buildings, hotels, subways, docks, clubs and other high-end places. This device organically integrates mechanical, electronic, microprocessor control, and various identity recognition technologies, making it compatible with IC cards, ID cards, barcode cards, fingerprints, and other card reading and recognition devices. By selecting various identity recognition system devices and adopting reliable security protection devices, alarm devices, direction indicators, etc., it coordinates to achieve intelligent control and management of passageways.
1. It has fault self checking and alarm prompt functions, making it convenient for users to maintain and use.
2. The operating status of programmable devices can be accessed through the built-in small keypad on the main control board.
3. Mechanical anti pinch and infrared induction anti pinch functions. When encountering resistance during the swing arm reset process, the motor will automatically stop within the specified time and reset again after a default delay (until reset), with a small force (≤ 2Kg).
4. Illegal intrusion, tailgating alarm, reverse intrusion gate automatically closes
5. Anti collision function, the swing arm automatically locks when no opening signal is received.
6. It has an automatic reset function. After the gate is opened, if no one passes through within the specified time, the system will automatically cancel the pedestrian's permission to pass. The reset time is adjustable from 1 second to 60 seconds (the system default time is 10 seconds). After power failure, the channel will automatically open (in accordance with fire safety requirements), and the power on channel will automatically close
7. Infrared sensing reset, infrared sensing anti pinch function (additional infrared sensor can be added)
8. It can control personnel entry and exit in one or two directions, with infrared sensing channels for entry and exit.
Specifications of Swing Turnstile Gate :
Product Name | Supermarket Swing Gate Turnstile Series |
Model No. | SEWO-B6-218 |
Housing Material | SUS201 Stainless Steel |
Infrared detection | 2 pairs |
Product Size(L*W*H) | 260 * 180 * 1050mm |
Swing Arm Length | ≤ 1700mm |
Transit speed | 45 people/minute |
Unlock time | 1s |
MCBF | ≥ 5,000,000 times |
Applications:
The turnstiles are mainly used in parks, subway, customers, airport, bus station, office building, scenic spot, community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants, Marquee Golf Tournaments, State Fairs, Special Sporting Events and Festivals!
FAQ
![]() |

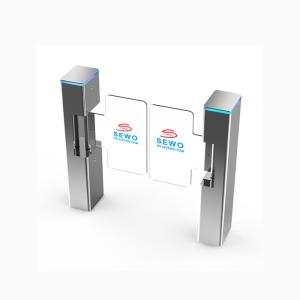

Indoor/Outdoor Intelligent Swing Barrier Gate with Advanced Identity Recognition Technologies Images |
